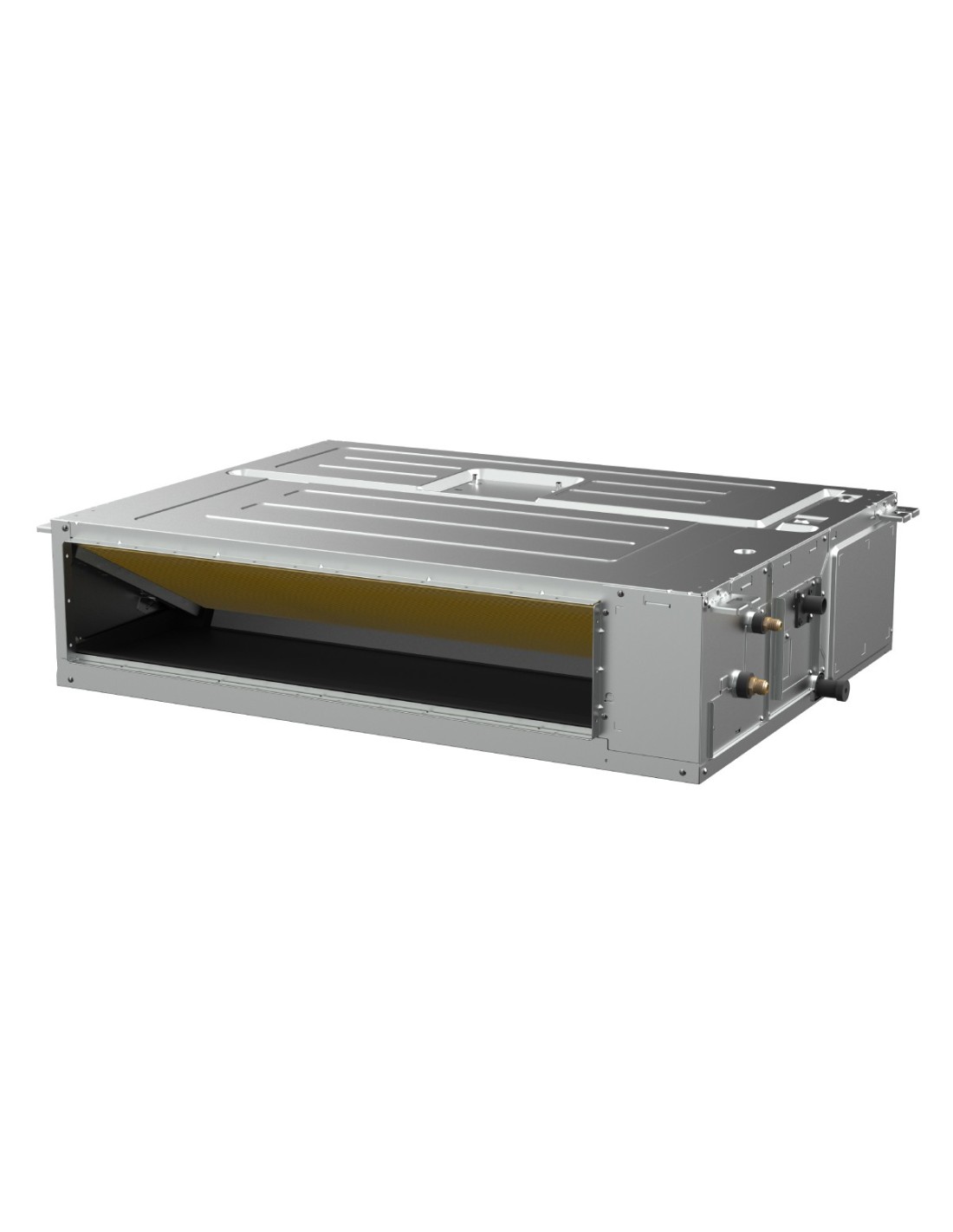

Commercial Air Conditioning – Ducted Units JDMV3 Series (Vertical and Horizontal Installation with Wi-Fi)
Contact Us to Inquire About This Product
Commercial Air Conditioning – Ducted Units JDMV3 Series (Vertical and Horizontal Installation with Wi-Fi)
Contact us to inquire about this product
Models from 3,030 to 13,120 frigorías
Single-phase units from 3,030 to 10,420
Three-phase units from 12,110 to 13,120
Vertical and horizontal installation available for models 71–170 with condensate tray on both sides
More compact indoor units – height from 20 cm and width from 70 cm
Outdoor units with a single fan across the entire range – smaller, more compact, and reduced volume
Twin system with synchronised control that connects two indoor units of the same type and capacity to a single outdoor unit
Wired controller JCRL120PW23 with Wi-Fi connection included as standard, featuring two-wire connection for more flexible installation
3 Years Full Warranty
10 Years Compressor Warranty
Main features
Models from 3,030 to 13,120 frigorías
Energy class A++
Refrigerant R32
Single-phase units from 3,030 to 10,420
Three-phase units from 12,110 to 13,120
Vertical and horizontal installation available for models 71–170 with condensate tray on both sides
Constant control of airflow volume
High static pressure up to 160 Pa
Eccentric fan design to improve airflow output and deliver higher performance
Fresh air intake for constant renewal
More compact indoor units – height from 20 cm and width from 70 cm
Rear and bottom air return
Built-in drain pump
Drain pump lifts condensate water up to 1 metre in models 71–170
Option for left and right condensate outlet if no drain pump is required (available in models 71–140)
Single-cable (S) communication connection
Motor access from the bottom
Large lateral maintenance space
Filter removal from the right, left, or bottom
Larger inspection window design
Twin system with synchronised control that connects two indoor units of the same type and capacity to a single outdoor unit
Outdoor units with a single fan across the entire range – smaller, more compact, and reduced volume
Indoor and outdoor unit heat exchangers coated with anti-corrosion material to withstand salty air or rain
Wired controller with Wi-Fi connection included as standard, featuring two-wire connection for flexible installation
3 Years Full Warranty
10 Years Compressor Warranty
Accessories
Wired controller JCRL120PW23 with Wi-Fi connection included as standard
Optional remote control JCRL10A2
Full parameter control through the NetHome Plus App, compatible with Alexa and Google Home
Compatible with Airzone communication gateway AZX6QADAPT3MD1
Optional centralized controller JVRCM180
Optional centralized controller JVRCM270
Optional centralized controller JVRC30CM
Optional ModBus controller MOD-VR6
