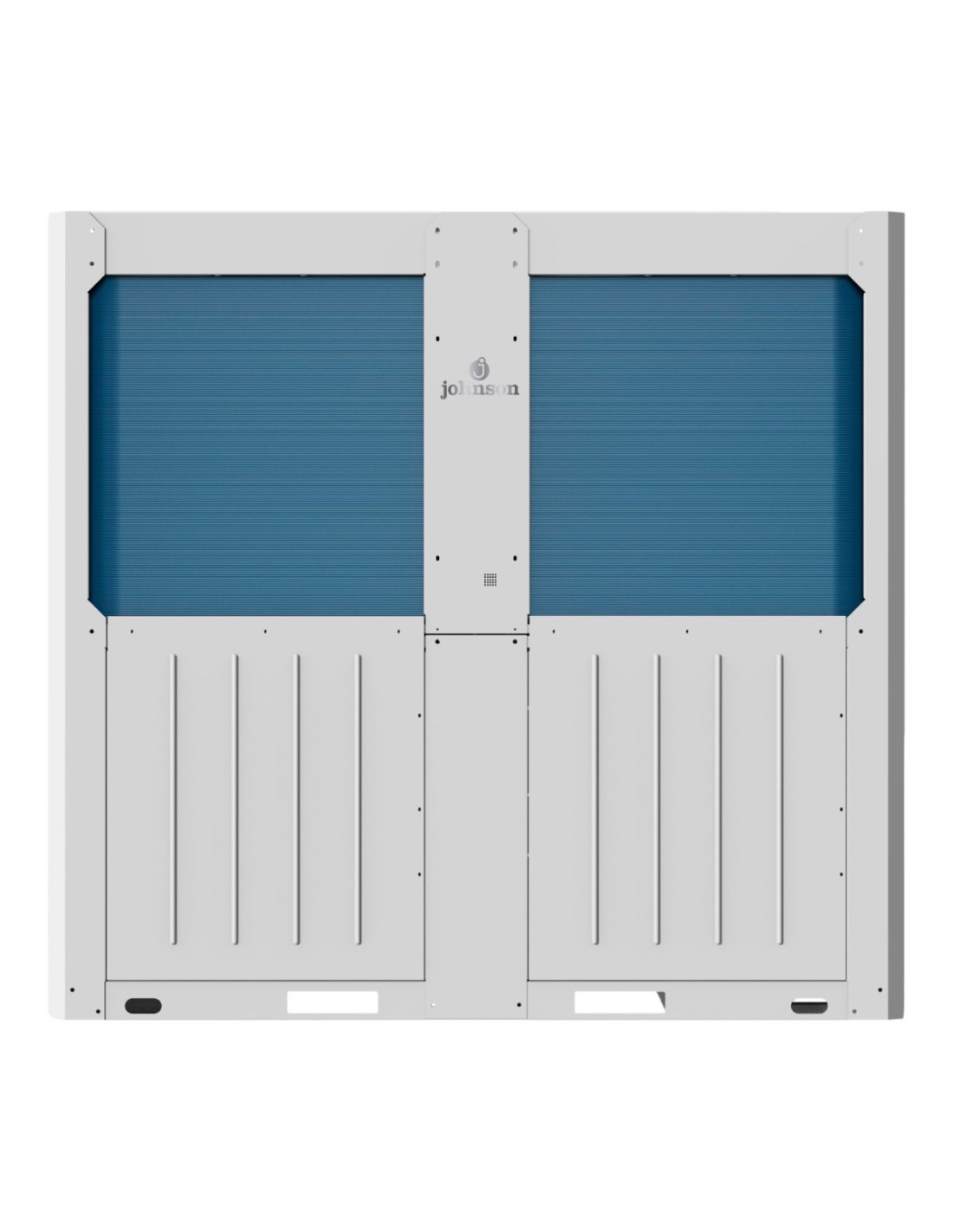

Monoblock Aerothermal System Serie AURUM R290 M TOP
Contact Us to Inquire About This Product
All-in-One System
Domestic Hot Water
Cooling/Heating with Fan Coils
Radiators
Underfloor Heating
Possibility of integration in modular systems with up to 8 units in a single system
Power options of 50 and 70 kW
Energy class A+++/A++
Full DC Inverter Technology
Water outlet temperature up to 85ºC
Wide range of outdoor temperatures
Wired controller included to manage operating parameters
Modbus connection for integration with home automation systems
Possibility of combining with solar thermal systems or boilers
Monoblock Aerothermal System
Refrigerant R290 – Green Gas GWP=3 / ODP=0
All-in-one
Domestic Hot Water
Cooling/Heating with Fan Coils
Radiators
Underfloor Heating
Power options of 50 and 70 kW
Three-phase units
Possibility of integration in modular systems
Individual on/off control of each unit
In case of failure, the system continues operating
Up to 8 units in a single system
Automatic control – one controller for all possible combined units
Energy class A+++/A++
Water outlet temperature up to 85ºC
Full DC Inverter Technology
Units designed with two compressors so that, in case one fails, the unit continues operating
Minimum and maximum water temperatures
Cooling -5~25 ºC / Heating 28~85 ºC / DHW 20~80 ºC
Wide range of outdoor temperatures
Cooling -15~48 ºC / Heating -25~43 ºC / DHW -25~43 ºC
Multi-plate heat exchanger made of thin rectangular multilayer channels to increase heat transfer, improving efficiency and reducing heat loss
Explosion-proof electrical system and main board
Water-side valve designed to prevent refrigerant leaks
Units designed to avoid freezing of components
Removable panels for easy maintenance and USB connection for program updates
Possibility to set DHW priority. In multiple parallel units, the slave unit can be configured to produce hot water separately
Auto-protection and self-diagnosis function
Multiple silent modes
Contact for secondary pump control
Condensation control
Wired controller included to manage operating parameters
