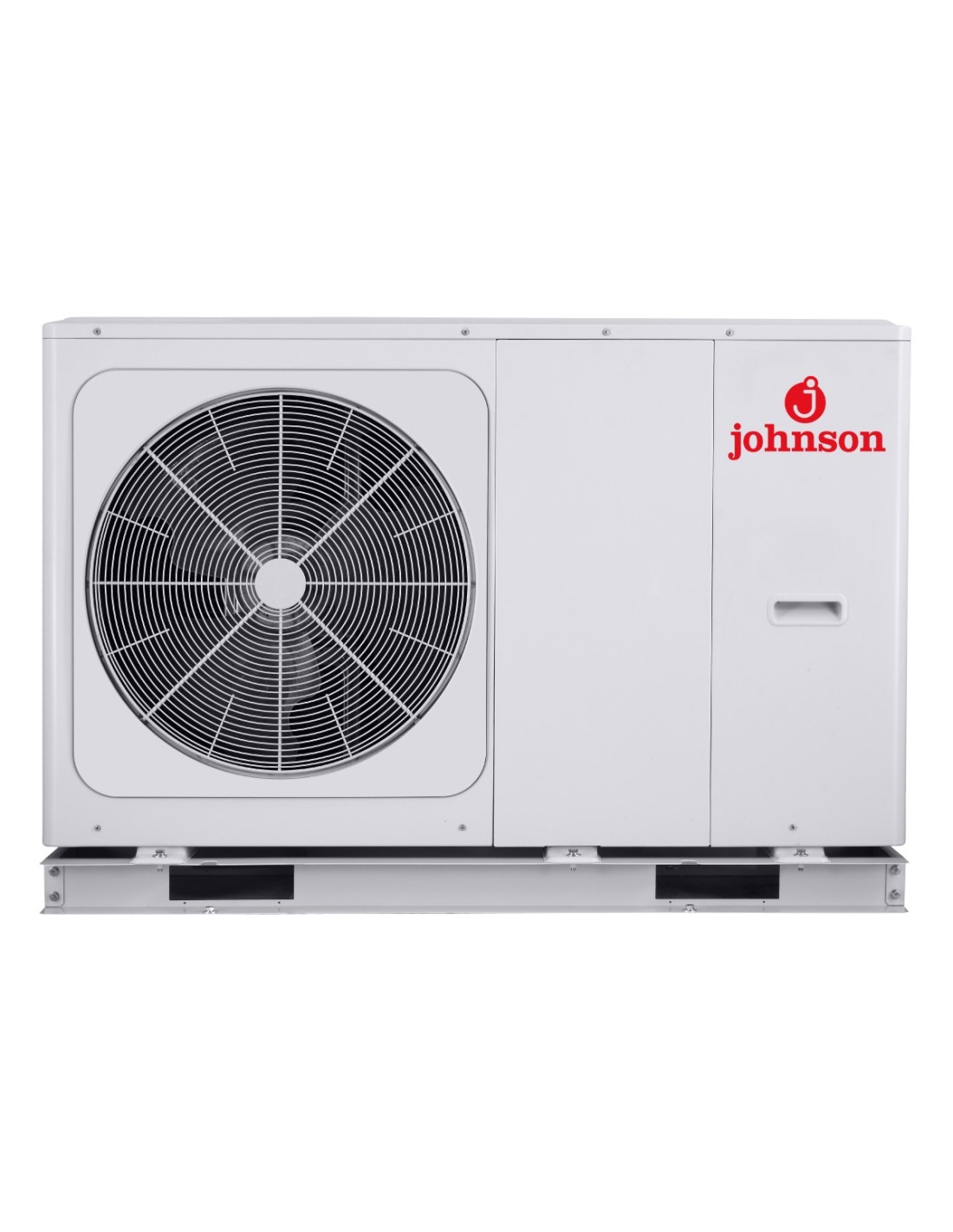

Monoblock Aerothermal System Serie AURUM R32 M

All-in-One System

Domestic Hot Water

Cooling/Heating with Fan Coils

Radiators

Underfloor Heating

Power options from 8 to 30 kW

VMA Series: Single-phase units from 8 to 16 kW

YMA Series: Three-phase units from 16 to 30 kW

Built-in Wi-Fi control

Energy class A+++/A++

Full DC Inverter Technology

Water outlet temperature up to 65ºC

Wide range of outdoor temperatures

Wired controller included to manage operating parameters

Modbus connection for integration with home automation systems

SmartGrid connection for integration with photovoltaic solar systems

Possibility of combining with solar thermal systems or boilers

Keymark Certified

Monoblock Aerothermal System
Refrigerant R32
All-in-one
Domestic Hot Water
Cooling/Heating with Fan Coils
Radiators
Underfloor Heating
Power options from 8 to 30 kW
VMA Series: Single-phase units from 8 to 16 kW
YMA Series: Three-phase units from 16 to 30 kW
Energy class A+++/A++
Seasonal Coefficient of Performance (SCOP) up to 7.09
Seasonal Energy Efficiency Ratio (SEER) up to 8.94
Water outlet temperature up to 65ºC
Full DC Inverter Technology
DC Inverter Fans / DC Inverter Water Pump / Twin Rotary DC Inverter Compressor
Wide range of outdoor temperatures
Cooling -5~43 ºC / Heating -25~35 ºC / DHW -25~45 ºC (single-phase) / DHW -10~46 ºC (three-phase)
Hydronic module, domestic hot water probe, and filter included as standard
Possibility of cascade installation (maximum 6 units)
Possibility to set DHW priority
Programming option to store DHW
Disinfection function
Defrost function
Power limitation function to adapt to different electrical supplies
Holiday and Eco modes available
Silent mode
Wi-Fi connection
Modbus connection for integration with home automation systems
SmartGrid connection for integration with photovoltaic solar systems
Possibility of combining with solar thermal systems or boilers
Keymark Certified

Wired controller included to manage operating parameters
Control of all parameters through the ‘iLetComfort’ App
