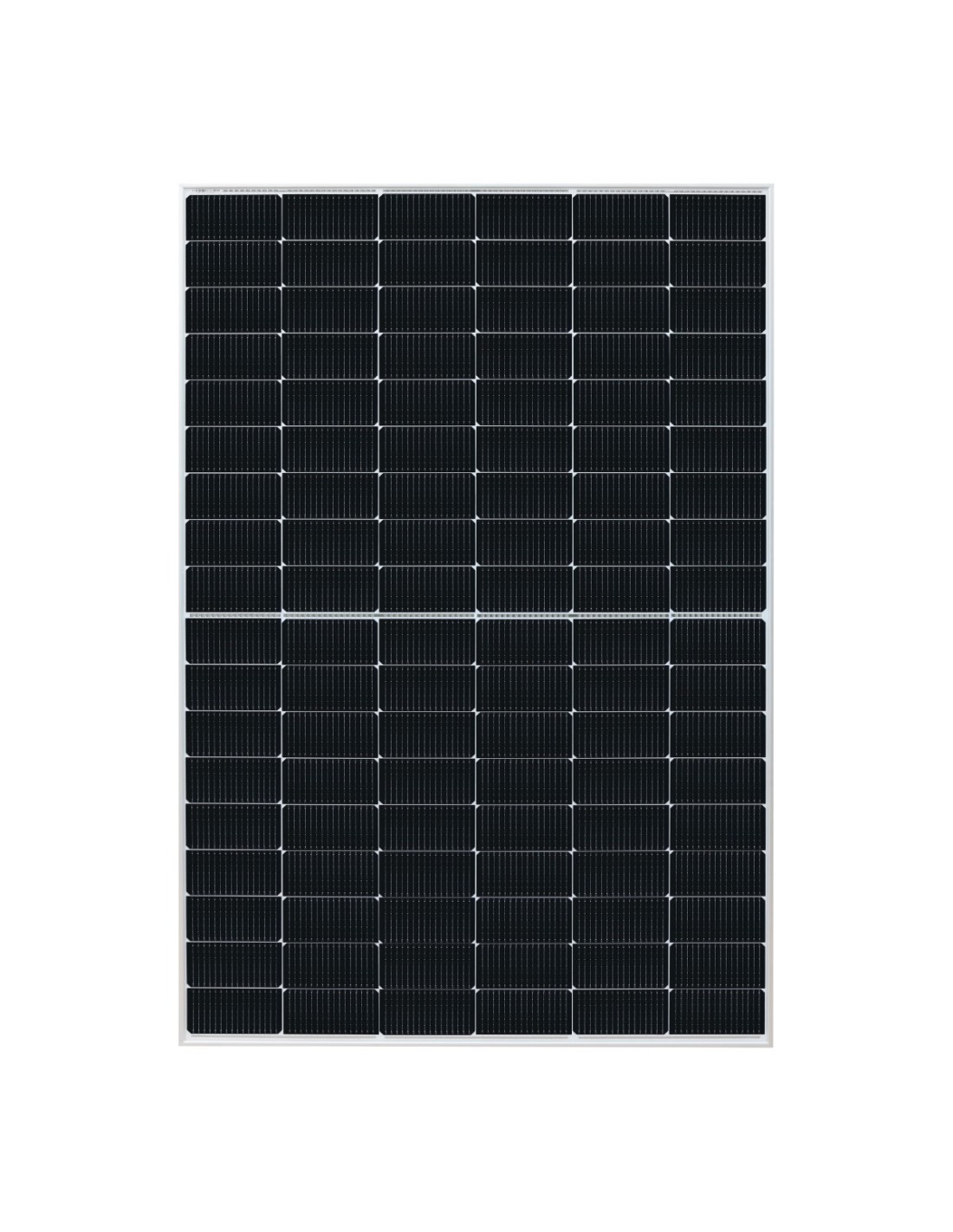

Photovoltaic Panels JSUN N-TYPE Series

Available in 450W and 580W, maximum power

Monocrystalline Silicon Panel

TOPCon coating – Higher efficiency and lower degradation

MBB technology (16 bus bars)

Half-Cut cells

Production warranty up to 30 years

FULL product warranty of 15 years

Main Features:

JSUN N-TYPE photovoltaic panels
Available in 450W – 108 cells (6x18)
Available in 580W – 144 cells (6x12x2)
Monocrystalline silicon panel
TOPCon coating – Higher efficiency and lower degradation
More compact design with maximum efficiency – 22.8% (450W model) and 22.65% (580W model)
Perfect size and weight for easy installation anywhere
Glass and surface designed to ensure perfect performance in low-light conditions in the higher-power model
MBB technology (16 bus bars)
Half-Cut cells
MBB and Half-Cut technologies reduce thermal resistance losses and the risk of hot spot damage, improving performance in warm climates
The panel is divided into two groups of cells, so if one side is shaded, the other continues producing normally
The output of the higher-power module increases by 5–25%, resulting in lower levelised energy cost and higher internal rate of return
Production warranty up to 30 years (first-year degradation <1%, annual degradation <0.4%)
FULL product warranty of 15 years
Dimensions JSUN450N (WxHxD): 1,134 x 1,762 x 30 mm
Dimensions JSUN580N (WxHxD): 1,134 x 2,278 x 30 mm
